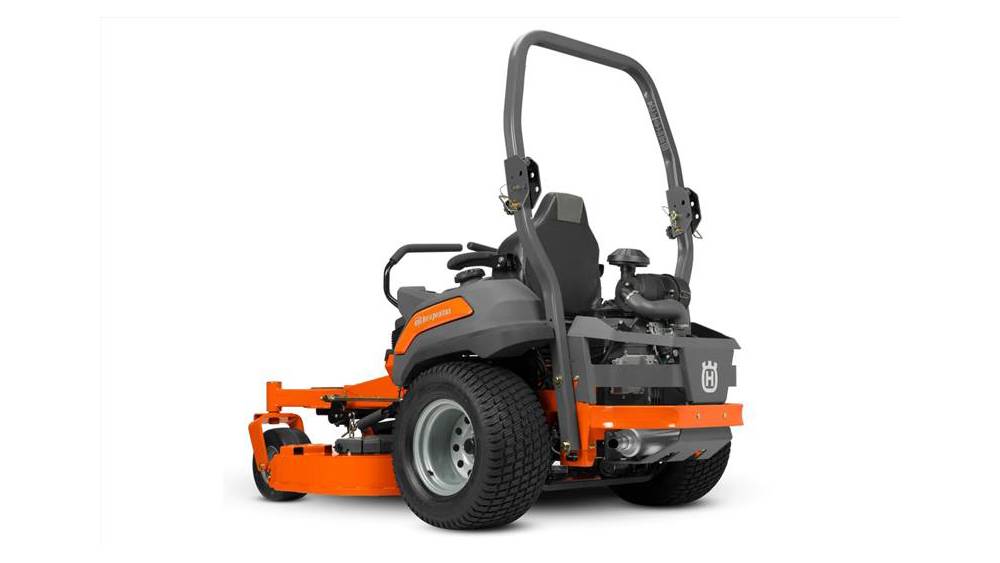

2025 Husqvarna Z560X

Overview

Availability Brochure
Model Z560X
Year 2025
Make Husqvarna

Product Features

Description

The Husqvarna Z500 series zero turn mower represents the latest design focused on productivity, durability and cut quality. Providing extreme comfort, high ground speeds and superior traction adds up to exceptional mowing efficiency. Industrial strength throughout the entire design assures of a long & durable service life while careful design consideration provides unprecedented ease in serviceability.
Features
  • Deck height adjustment: The deck lift system is spring assisted and allows convenient hand free operation. A simple locking pin adjusts cut height.
  • HydroGear ZT5400 Transmissions: The largest and most capable commercial transmission in the line-up that will handle the biggest jobs in landscaping

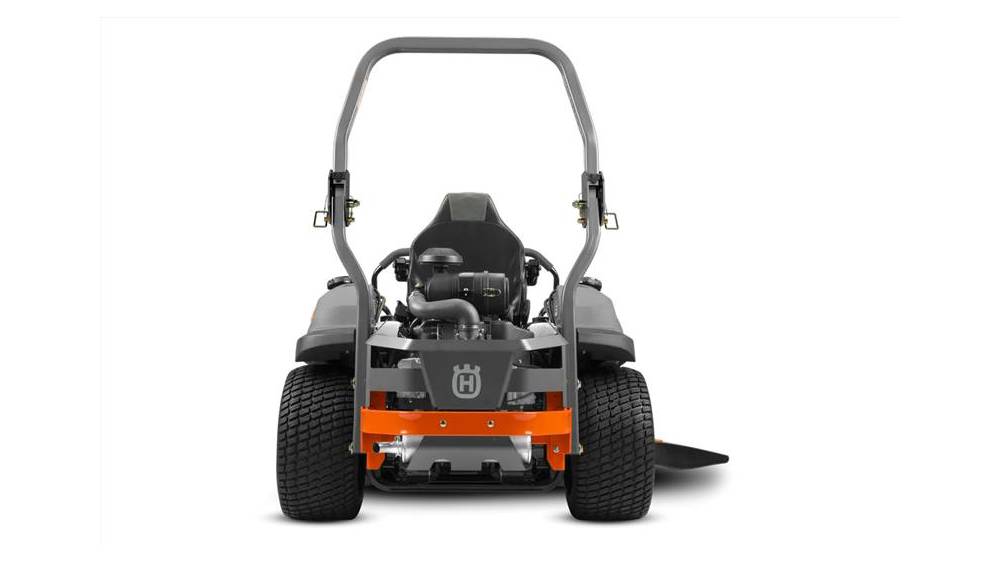

  • Roll Over Protection System (ROPS): The easily foldable ROPS protects the user and can be lowered in areas without the proper clearance.
  • Large fuel capacity: Twelve gallons of fuel capacity for all-day cutting capability.

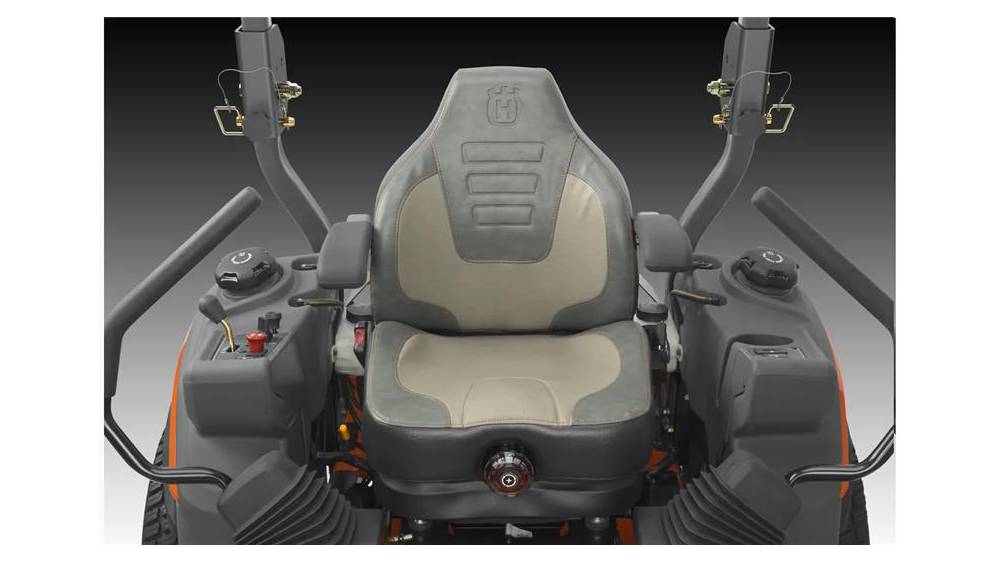

  • Premium suspension seat: Heavily bolstered cushions provide all day comfort for the operator. Combined with a dial by weight full suspension seat, the Z500 series provides extreme comfort under the most adverse situations
  • AGM Battery: A smaller and more robust battery adopted from the transportation industry provides better reliability, improved longevity and more service space.
  • LED fuel gauge: The automotive style LED fuel gauge lets you know exactly how much fuel is remaining and warns you when you are too low.
  • Heavy duty rubber discharge chute: The discharge chute is built of heavy-duty rubber to withstand wear and tear while protecting nearby property.

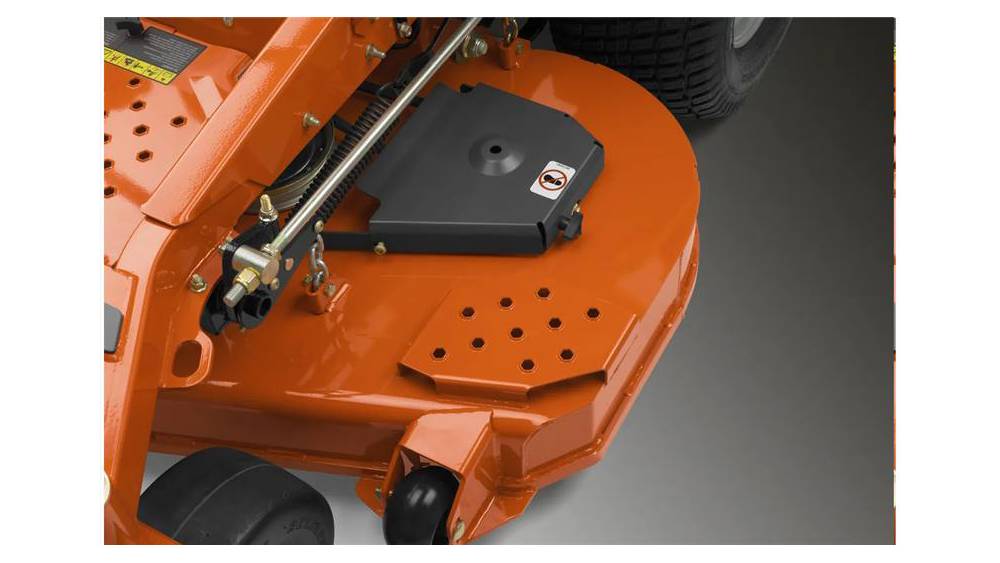

  • Heavy duty fabricated cutting deck: A deep draw deck, heavy duty cutting blades and an efficient flow design allow for rapid cut speeds with a high quality finish.
  • Cast iron spindles: 10″ diameter cast iron spindles, supported by heavy duty tapered roller bearings give maximum durability and impact resistance.
  • Automatic parking brake: The patent pending parking brake system automatically activates or deactivates as the steering levers are moved outward or inward. (Z560X with optional dust boots shown)

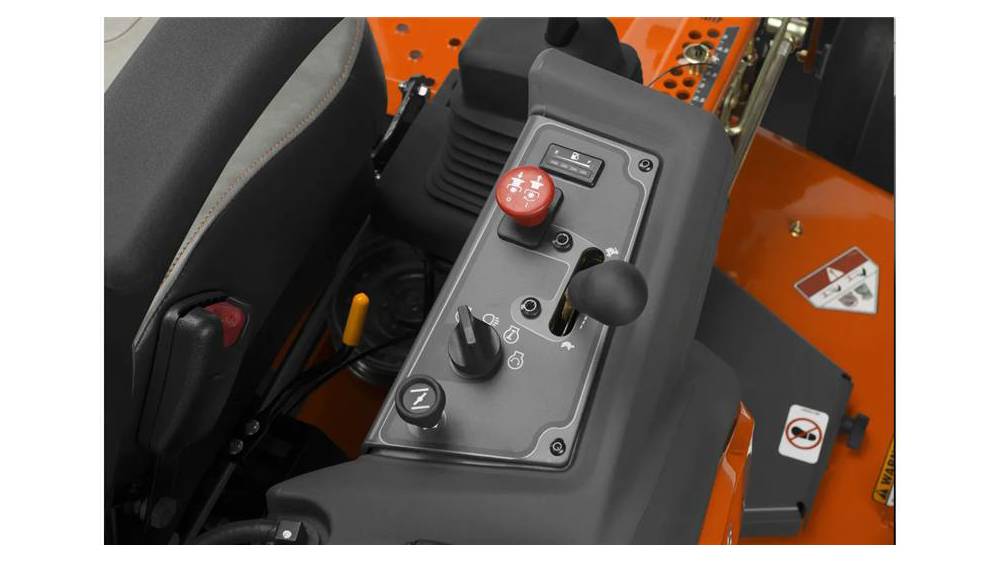

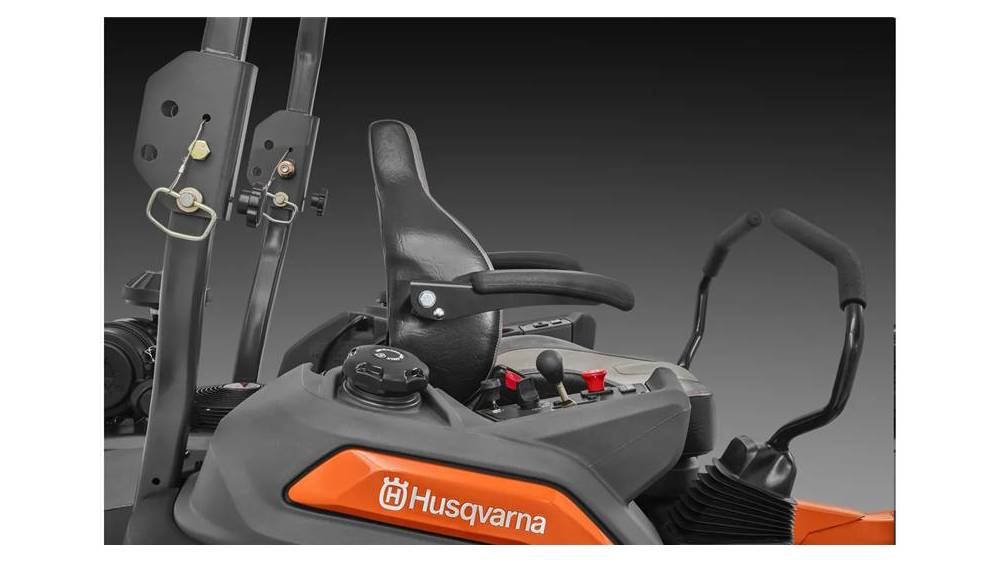

  • Ergonomic controls: Comfortable, user-focused controls put everything needed to operate the mower within easy reach.
Capacity
  • Cutting width: 60 in (152 cm)
  • Speed forward min: 0 mph (0 km/h)
  • Speed forward max: 12 mph (19.3 km/h)
Cutting Deck
  • Cutting Methods (filter): Side discharge
  • Cutting methods: Collect/Mulch/Side discharge
  • Deck thickness: 7 gauge
  • Deck Wash Port: No
  • Greasable mandrels: Yes
  • Nose roller: No
  • Powder-coated cutting deck: Yes
  • Spindle/mandrel type: Cast iron
  • Deck lifting system: Manual, hand operated
  • Cutting height steps: 16
  • Cutting deck type: 7-gauge fabricated
  • Anti-scalp wheels: 6
  • Blade engagement: Electric clutch
  • Blades: 3 pcs
  • Cutting deck material: Steel
  • Cutting height, min (approximate): 1 in (25.4 mm)
  • Cutting height, max (approximate): 5 in (127 mm)
Dimensions
  • Weight: 1,309 lb (594 kg)
  • Base machine, height (ROPS down): 46 in.
  • Base machine, height (ROPS up): 73 in.
  • Base machine, height: 46 in.
  • Base machine, length: 81 in.
  • Base machine, width (chute down): 74 in.
  • Base machine, width (chute up): 63.75 in.
Drive System
  • Transmission manufacturer: Hydro-Gear
  • Transmission type: Hydrostatic
Engine
  • Engine name: FX Series
  • Power output: 31 HP
  • Cylinder displacement: 61 cu.in. (999 cm³)

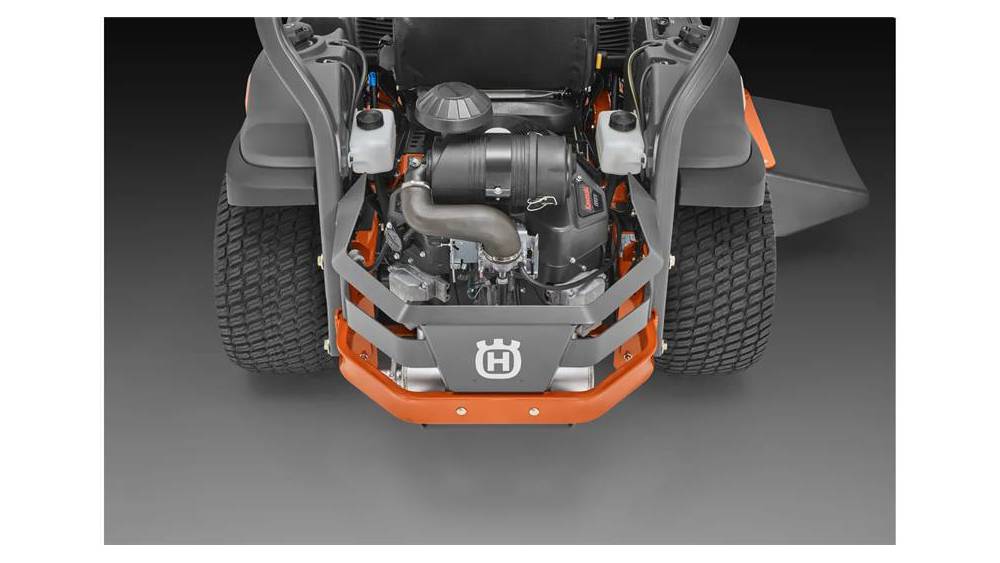

  • Air filter type: Heavy-Duty Canister Style
  • Cylinders: 2
  • Engine cooling: Air
  • Engine lubrication type: Full pressure with oil filter
  • Fuel tank location: Side (Dual)
  • Fuel tank volume (with reserve): 12 gal. (45.4 L)
  • Motor/engine manufacturer: Kawasaki
  • Oil filter: Yes
Equipment
  • Seat type: Premium, suspension
  • Cup holder: Yes
  • Hinged armrests: Standard
  • Hour meter type: Yes
  • ROPS: Yes
  • Seat back height: High
  • Seat material: Vinyl
Control
  • Not applicable
Emission
  • Exhaust emissions (CO2 EU V); 809 g/kWh
Engine Manufacturer

Kawasaki
Horsepower

31 HP
Displacement

61 cu.in. (999 cc)
Fuel Capacity

12 gal. (45.4 L)
