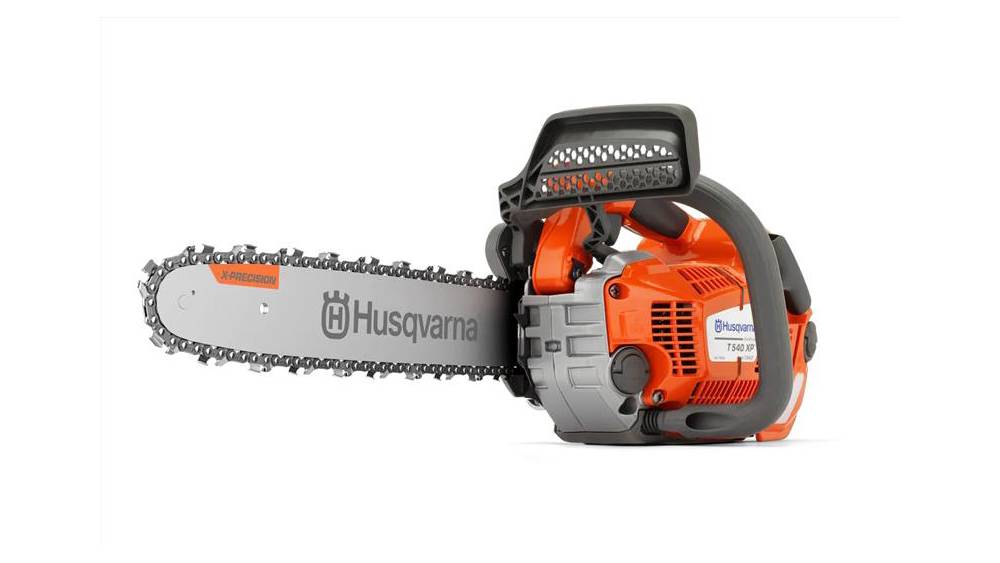

2025 Husqvarna T540 XP® II 14"

Overview

Availability	Brochure
Model	T540 XP® II 14″
Year	2025
Make	Husqvarna

Product Features

Description

Powerful 38cc top-handle chainsaw for professional tree climbers Husqvarna T540 XP® is designed for the high-end top handle saw segment, targeting professional customers like full pro arborists, landscapers, garden contractors and utility services who need excellent performance in combination with the best ergonomics. Features

AutoTune: AutoTune gives optimal engine performance throughout automatic engine setting. No time spent on carburettor adjustments. It compensates for different fuels, altitude, humidity, temperature and clogged air filter.
Adjustable Oil Pump: Customize and control oil flow to meet any need
Individual grip size: The top handle grip size can be set in three alternative sizes, to perfectly fit your hand.
Belt eyelet: Makes it quick and easy to connect the saw to the climbing harness.
Quick-Release Air Filter: Easily remove and replace the filter after cleaning
Simple Starting: Stop switch automatically resets to ON so tool is ready for next use
Air Injection™ Technology: Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter to help improve engine life
Retained bar nut: The retaining function prevents loosing the bar nut.
Side Chain Tensioning: Quickly and easily adjust the chain
LowVib® Technology: Dampeners between the engine and chassis significantly reduce vibrations so you can work more comfortably
Quick release air filter cover: Quick release cover saves time when cleaning or changing spark plug or filter.
Magnesium crankcase: Sturdily built crankcase withstands high rpms and tough professional use, ensuring a long service life.
Fuel Indicator: Transparent fuel indicator makes it easy to check fuel level
Inertia-Activated Chain Brake: Reduces the likelihood of injury due to kickback.
Chain break window: Improved design allows for better visibility of the guide bar tip.
Easier cold starting: Starting a cold engine requires less effort thanks to the air purge.
Flip-up tank cap: The flip-up tank cap is easy to open.
Smart Start® Technology: Specially-designed engine and starter for easy and fast starting with minimum effort

Engine

Chain speed at max power: 63.65 fts (19.4 m/s)
Cylinder displacement: 37.7 cm³
Output shaft power1: 2.4 hp (1.8 kW)
Torque, max.: 1.83 Nm
Torque, max. at rpm: 140 rpm
Clutch engagement speed (±120): 4,500 rpm
Electrode gap: 0.02 in
Idling speed: 3,000 rpm
Ignition module air gap: 0.01 in
Maximum power speed: 10,200 rpm
Oil pump capacity, max: 9 ml/min
Oil pump capacity, min: 3 ml/min
Oil pump type: Adjustable flow
Spark Plug: NGK CMR6H

Equipment

Recommended bar length, min: 12 in (30 cm)
Pitch: .325″ mini
Recommended bar length, max: 16 in (40 cm cm)
Chain type: SP21G
Bar length: 35 cm
Bar length (inch): 14 in
Sprocket type: Spur 6
Gauge: .043″

Dimensions

Weight (excl. cutting equipment): 8.6 lb (3.9 kg)

Vibration

Equivalent vibration level (ahv, eq) rear handle: 4.2 m/s²
Equivalent vibration level (ahv, eq) front handle: 3.5 m/s²

Sound and noise

Sound pressure level at operators ear: 104 dB(A)
Sound power level, guaranteed (LWA): 116 dB(A)
Sound power level, measured: 114 dB(A)

Lubricant

Oil tank volume: 0.42 US pint
Lubricant type (Engine): Husqvarna 2 stroke or equiv. at 50:1

Emission

Exhaust emissions (CO2 EU V)2: 968 g/kWh

NOTES:

Disclaimer: 1Output shaft power: Net power rating as per ISO 7293, at specified RPM 2Exhaust emissions (CO2 EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
