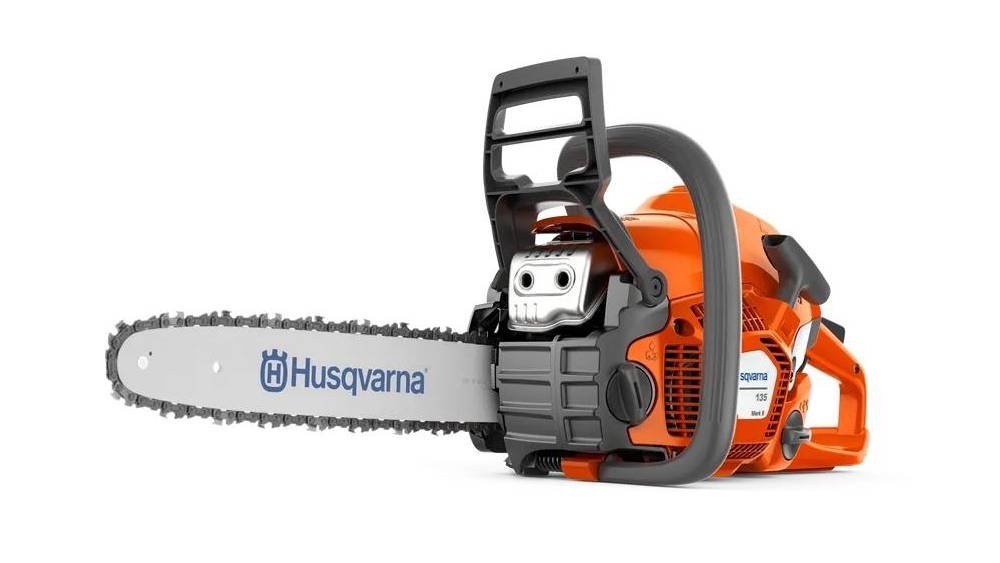

2025 Husqvarna 135 Mark II

Overview

Availability	Brochure
Model	135 Mark II
Year	2025
Make	Husqvarna

Product Features

Description

Easy-to-use and powerful chainsaw with quick start Get the job done the first time with the Husqvarna 135 Mark II. This reliable gas saw features Smart Start® and LowVib® technology for easy, comfortable use. Our proprietary X-TORQ® engine delivers superior performance, increased fuel efficiency and low emissions. And Air Injection™ technology improves engine life by expelling larger dust and debris particles before they reach the air filter.

Features

Powerful and Efficient X-TORQ® Engine: Great power and efficiency
LowVib® Technology: Effective LowVib® dampeners absorb vibration, sparing the user’s arms and hands.
Smart Start® Technology: Specially-designed engine and starter for easy and fast starting with minimum effort
Quick Start with Air Purge: Air purge removes air from carburetor and fuel system for easy starting
Simple Starting: Stop switch automatically resets to ON so chainsaw is ready for next use
Air Injection™ Technology: Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter to help improve engine life
Combined Choke/Stop Control: Provides easier starting and reduces the risk of engine flooding
Inertia-Activated Chain Brake: Effective inertia-activated chain brake reduces the likelihood of injury due to kickback.
Side Chain Tensioning: Quickly and easily adjust the chain

Engine

Chain speed at max power: 55 fts (16.8 m/s)
Cylinder displacement: 38 cm³
Output shaft power1 : 2.1 hp (1.6 kW)
Torque, max.: 1.84 Nm
Torque, max. at rpm: 8,000 rpm
Clutch engagement speed (±120): 4,000 rpm
Electrode gap: 0.022 in
Idling speed: 3,000 rpm
Ignition module air gap: 0.012 in
Maximum power speed: 9,000 rpm
Oil pump type: Automatic
Spark Plug: NGK BPMR7A

Emission

Exhaust emissions (CO2 EU V): 804 g/kWh

Equipment

Recommended bar length, min: 14 in (35 cm)
Pitch: 3/8″ mini
Recommended bar length, max: 16 in (40 cm)
Chain type: S93G
Bar length: 40 cm
Bar length (inch): 16 in
Sprocket type: Spur 6
Gauge: .050″

Dimensions

Weight (excl. cutting equipment): 4.7 kg

Sound and Noise

Sound pressure level at operators ear: 102 dB(A)
Sound power level, guaranteed (LWA): 116 dB(A)
Sound power level, measured: 114.34 dB(A)

Vibration

Equivalent vibration level (ahv, eq) rear handle: 5.5 m/s²
Equivalent vibration level (ahv, eq) front handle: 3.72 m/s²

Lubricant

Oil tank volume: 0.549 US pint
Lubricant type (Engine): Husqvarna 2 stroke or equiv. at 50:1

NOTES:

Disclaimer: 1Output shaft power: Net power rating as per ISO 7293, at specified RPM 2Exhaust emissions (CO2 EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
